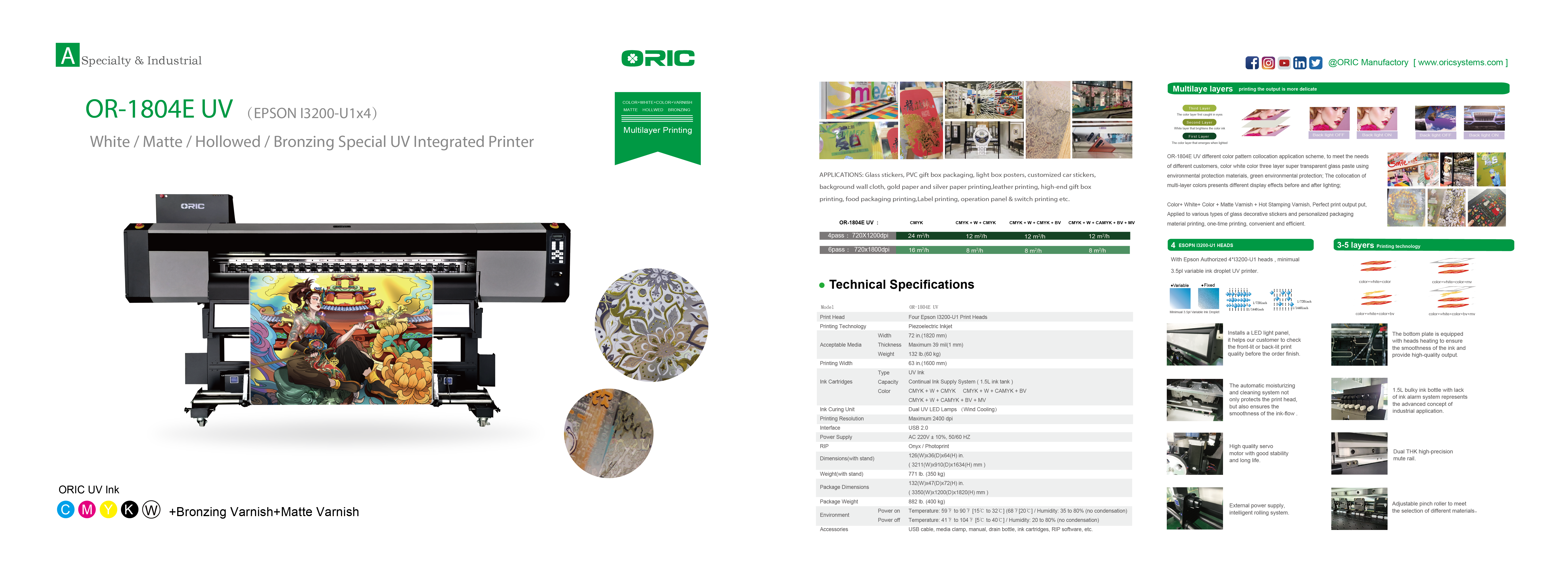

OR-1804E UV Roll To Roll Printer With Four Epson I3200-U1 Print Heads

Parameter
Print Head: Four Epson I3200-U1 Print Heads
Max Print Size: 63 in.(1600 mm)
Colors : CMYK + W + CMYK
CMYK + W + CAMYK + BV
CMYK + W + CAMYK + BV + MV

Feature
White / Matte / Hollowed / Bronzing Special UV Integrated Printer


  • OR-1804E UV

  • ORIC

Availability:
Inquiry Add to Basket

PDF Export

Printer Heads

喷头2Epson Inkjet Head - i3200-U1

The Epson authorized i3200-U1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution.PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers.


Product Specifications:
Product name EPSON i3200-U1
Ink Type UV ink
Type PrecisionCore MicroTFP print head
WidthxDepthxHeight 69.1x 59.4 x 35.6 mm
Number of Nozzle 3200
Nozzle pitch/nozzle row 1/300 inch
Nozzle rows 8 rows
Nozzle Resolution 300 npi /row 600 npi/2 rows
Max. number of colour inks 4 colours
Droplet volumes 6 pl (Single mode)
6.3,1 2.3 pl (Multi mode)

* Four I3200-U1 Print Heads Speed (cmyk)

720x1200dpi - 4pass              24 m²/h

720x1800dpi - 6pass              16 m²/h


Technical Specifications


Technical Specifications
ModelOR-1804E UV
Print HeadFour Epson I3200-U1 Print Heads
Printing TechnologyPiezoelectric Inkjet
Acceptable MediaWidth72in.（1820mm）
ThicknessMaximum 39 mil(1 mm)
Weight
132lb.（60kg）
Printing Width63in.（1600mm）
Ink CartridgesTypeUV Ink
CapacityContinual Ink Supply System ( 1.25L ink tank )
ColorCMYK + W + CMYK     CMYK + W + CAMYK + BV CMYK + W +CAMYK + BV + MV
Ink Curing UnitDual UV LED Lamps （Wind Cooling）
Printing ResolutionMaximum 2400 dpi
InterfaceUSB2.0
Power SupplyAC 220V ± 10%, 50/60 HZ
RIPOnyx / Photoprint
Dimensions(with stand)126(W)x36(D)x64(H) in. ( 3211(W)x910(D)x1634(H) mm )
Weight(with stand)771 lb. (350 kg)
Package Dimensions132(W)x47(D)x72(H) in.( 3350(W)x1200(D)x1820(H) mm )
Package Weight882 lb. (400 kg)
Packing DimensionsPower on
Temperature: 59℉ to 90℉ [15℃ to 32℃] (68℉[20℃] / Humidity: 35 to 80% (no condensation)
Power offTemperature: 41℉ to 104℉ [5℃ to 40℃] / Humidity: 20 to 80% (no condensation）
WeightUSB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc.


Working Process

OR-1804E UV roll to roll3

OR-1804E UV roll to roll4OR-1804E UV different color pattern collocation application scheme, to meet the needs of different customers, color white color three layer super transparent glass paste using environmental protection materials, green environmental protection; The collocation of multi-layer colors presents different display effects before and after lighting;


Color+ White+ Color + Matte Varnish + Hot Stamping Varnish, Perfect print output put, Applied to various types of glass decorative stickers and personalized packaging material printing, one-time printing, convenient and efficient.




OR-1804E UV roll to roll2

Features

Feature of OR-1804E UV

Latest technology of DTF , Want some quality clothing shirt? Try our DTF Print, same as silkscreen.


1

Installs a LED light panel, it helps our customer to check the front-lit or back-lit print quality before the order finish.

2

The bottom plate is equipped with heads heating to ensure the smoothness of the ink and provide high-quality output.


3

The automatic moisturizing and cleaning system not only protects the print head, but also ensures the smoothness of the ink-flow .

4

1.5L bulky ink bottle with lack of ink alarm system represents the advanced concept of industrial application.

5

High quality servo motor with good stability and long life.

6 Dual THK high-precision mute rail.



Application

OR-1804E UV roll to roll1

APPLICATIONS: Glass stickers, PVC gift box packaging, light box posters, customized car stickers,background wall cloth, gold paper and silver paper printing,leather printing, high-end gift box printing, food packaging printing,Label printing, operation panel & switch printing etc.

Additional Value
01
Year Warranty
Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
02

Online Technical Support
The expert team will serve you online and solve any problems you encounter for free.
03
Inkjet Printer Starter Kit
Starter kit pack including complete set of test inks, commonly used replacement parts，and the user's guide, installation Video Instructions.
04
Dealer’s Team Training
Regularly provide our dealers , technical training of new models, application solutions training, sales guidance training.

DTF Accessories
DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.
DTF PET Films
DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.
DTF Textile Prinitng Ink
DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology.ORIC offers different colors of DTF inks such as W, Y, K, M, C, Or, Gr, and also fluorescence pink & fluorescence yellow.
DTF Hot Melt Powder
Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.
