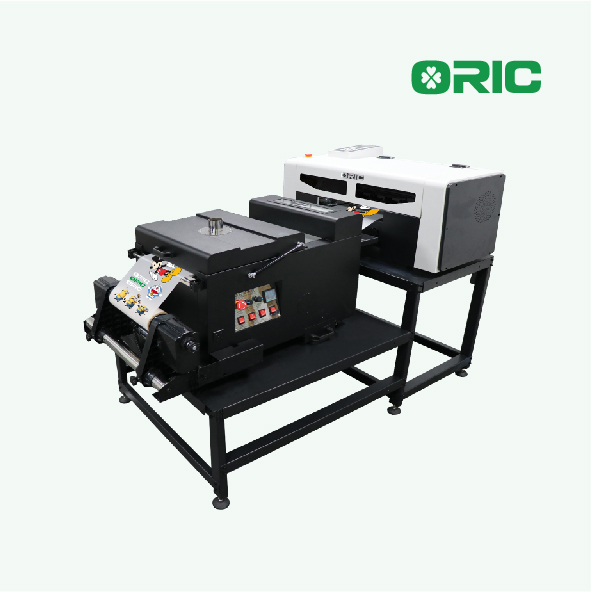

OR-A3 Mini320 DTF Film Printing Machine OR-A3 DTF Mini320

Direct to Film Comprehensive Solution

Parameter
Print Head: Dual F1080 print heads.
Max Print Size: 300MM Print Width.
Print Speed: 4pass 7.1 sqm/h
Colors : CMYKLcLm + W

Feature
DTF-Mini320 is a new generation of the digital revolution, creating a new digital dtf film printing process. It makes up for the shortcomings of the existing dtf technology. The max printing width with 33mm roll to roll . Max print speed upto 7.1m2/h.

PDF Export

Printer Heads

V

Epson Inkjet Head - i3200-A1

The Epson authorized iI3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution .PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers

Product Specifications:
Product name EPSON i3200-A1
Ink Type Aqueous
Type PrecisionCore MicroTFP printhead
WidthxDepthxHeight 69.1x 59.4 x 35.6 mm
Number of Nozzle 3200
Nozzle pitch/nozzle row 1/300 inch
Nozzle rows 8 rows
Nozzle Resolution 300 npi /row 600 npi/2 rows
Max. number of colour inks 4 colours
Droplet volumes 6 pl (Single mode)
6.3,1 2.3 pl (Multi mode)
B781EE34-1F19-4F79-AECF-6DD9FD80F6CE

* Four I3200 Print Heads Speed

360x1800dpi - 4pass              20 m²/h


720x1200dpi - 6pass               14 m²/h






Specifications

Technical Specifications

T-shirt Digital Heat Transfer Printing Machine
Model
OR-A3 Mini330 DTF
Print Head
2 F1080 Print Heads
Printing Technology
Piezoelectric Inkjet
Acceptable MediaWidth320 mm
ThicknessMaximum 39 mil(1 mm)
Printing Width
≤ 300 mm
Ink CartridgesTypeTransfer Pigment Ink
CapacityColor Siphon+Regular stirring of white ink
ColorCMYKLcLm + W
Applicable Medium
Transfer film
Color Manage
ICC or density curve
Media Heating System
Powder & color fixing machine
Interface
RJ-45/LAN
RIP Software
Main top / Photoprint
Power Supply
50HZ/60HZ,220V/110V/10A
EnvironmentTemperature22℃ to 28℃
Humidity40% to 70%
Printer Dimensions(With Stand)
L950mm*W600mm*H550mm
Weight
95kg


Shaking Powder and Color Fix Machine
ModelA3 Power Shaker
Media Width0-300mm
Applicable MediumNylon, Chemical Fiber, Cotton, Leather, Swimwear, Wetsuit, PVC, EVA, etc.
Powder ControlPowder shake control, powder control, powder direction and volume control
Heating & Drying FunctionMulti-stage heating system, drying, cold air fan function
Rewind FunctionAutomatic induction winding
Electrical ParametersRated Voltage: 220V            Rated Current: 20A
Rated Power: 2KW              Power Consumption: 1KW-1.5KW
Packing Size & WeightStandard: L850* W670* H670mm
G.W: 115kg   N.W: 90kg
Power Shaker DimensionsStandard (Take-up Systems): L950* W550* H550mm


Working Process

ORIC模板.Working Process



▼ Design Pattern

Use photoshop, illustrator or other software to design your pattern.

▼ Print Your Design

Adjust the printer parameters in the RIP software and use our printer and ink to print your pattern.

▼ Powdering

Turn on the switch of the powder shaking machine, the machine will automatically powdering, and dry and fix the color.

▼ Heat Press

Use a heat press machine, set the temperature to 180 degrees, and time 15 seconds to transfer.




Features

Feature of OR-A3 Mini320 DTF

Latest technology of DTF , Want some quality clothing shirt? Try our DTF Print, same as silkscreen.


j

Heavy media pinch roll, section media pinch roll and high elastic spring effectively guarantee the accuracy of media feeding and stability of printing.

e

Intelligent operation panel, easy to operate


a

Power shaker dryer control panel, easy to operate, efficient and convenient

b

Automatic media feeder, media holder resistance is adjustable,with thickened 5cm diameter steel pipe.

c

White ink stirring, white ink automatically intermittent stirring , make the caridge ink circulation to prevent heads blockage.

d "With continue ink supply system, constant pressure ink supply, effectively prevent ink breaking"


Videos

Applications of DTF Printer

Commonly used products such as T-shirts, hats, backpacks, lanyards, shoes and more to create unique fashion pieces. It can also be used in denim clothes, non-woven bags, gift bags, pearl clothing, baseball caps, fabric gift boxes, etc. Make your travel outfit unique .

 T-shirt                       Denim/Jeans
 Canvas                      Hoodies
 Backpacks.               Lanyards
Shoes                         Gift Bags
Baseball Caps            Fabric Gift Boxes
 Sweaters and more......





Additional Value
01
Year Warranty
Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
02

Online Technical Support
The expert team will serve you online and solve any problems you encounter for free.
03
Inkjet Printer Starter Kit
Starter kit pack including complete set of test inks, commonly used replacement parts,and the user's guide, installation Video Instructions.
04
Dealer’s Team Training
Regularly provide our dealers , technical training of new models, application solutions training, sales guidance training.

DTF Accessories
DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.
DTF PET Films
DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.
DTF Textile Prinitng Ink
DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology.ORIC offers different colors of DTF inks such as W, Y, K, M, C, Or, Gr, and also fluorescence pink & fluorescence yellow.
DTF Hot Melt Powder
Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.
