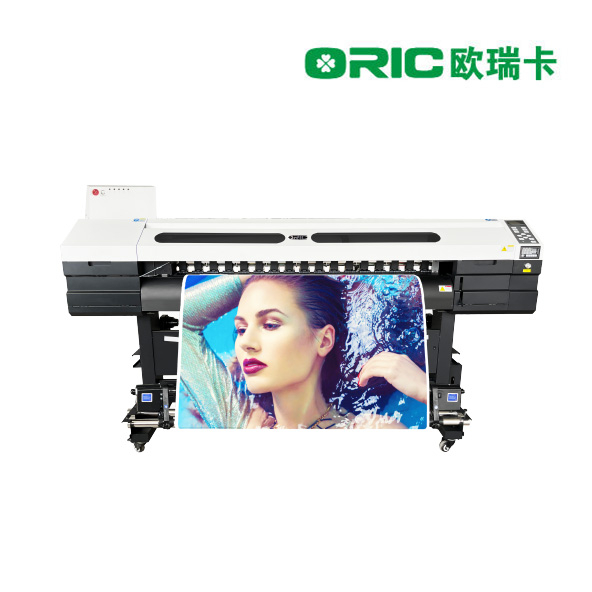

OR-1602 UV Economical UV roll to roll printer

Parameter
Print Head: Double i1600-U1 Print Heads (i3200-UV Optional)
Max Print Size: 63 in.(1600 mm)
Colors : CMYK/W+CMYK

Feature
Economical UV roll t roll printer (2*11600-U1) i3200-U1 Optional

  • OR-1602 UV

  • ORIC

Availability:

PDF Export

Printer Heads

喷头2Epson Inkjet Head - i3200-U1

The Epson authorized i3200-U1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution.PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers.


Product Specifications:
Product name EPSON i3200-U1
Ink Type UV ink
Type PrecisionCore MicroTFP print head
WidthxDepthxHeight 69.1x 59.4 x 35.6 mm
Number of Nozzle 3200
Nozzle pitch/nozzle row 1/300 inch
Nozzle rows 8 rows
Nozzle Resolution 300 npi /row 600 npi/2 rows
Max. number of colour inks 4 colours
Droplet volumes 6 pl (Single mode)
6.3,1 2.3 pl (Multi mode)

* Four I3200-U1 Print Heads Speed (cmyk)

720x900dpi - 6pass              21 sqm/h


720x1200dpi - 8pass            17 sqm/h


Technical Specifications


Technical Specifications
ModelOR-1604E UV
Print HeadDouble i1600-U1 Print Heads (i3200-UV Optional)
Printing TechnologyPiezoelectric Inkjet
Acceptable MediaWidth63.7 in.(1620mm)
ThicknessMaximum 39 mil(1 mm)
Weight
132 lb.(60kg)
Printing Width63in.(1600mm)
Ink CartridgesTypeUV Ink
CapacityBulk ink supply system with 500m ink tank
ColorCMYK/W+CMYK
Printing ResolutionMaximum 2400 dpi
SpeedCMYK
6pass (720*900dpi) 21 ㎡/h
W+CMYK6pass (720*900dpi) 11 ㎡/h
Curing UnitWater-cooling UV lamp
InterfaceEthernet
Power SupplyAC 220V ± 10%, 50/60 HZ
Dimensions(with stand)102(W)x30(D)x62.2(H) in. ( 2590(W)x760(D)x1580(H) mm )
Weight(with stand)240 kg
Package Dimensions124(W)x41(D)x59(H) in.( 3140(W)x1048(D)x1490(H) mm )
Package Weight260 kg
Packing DimensionsPower on
Temperature: 59℉ to 90℉ [15℃ to 32℃] (68℉[20℃] / Humidity: 35 to 80% (no condensation)
Power offTemperature: 41℉ to 104℉ [5℃ to 40℃] / Humidity: 20 to 80% (no condensation)
WeightData cable, media presser, user manual, maintenance tank, ink cartridges


Working Process

1604

  • Leadshine DC Servo Motor

  • THK high precision mute rail

  • lgus mute drag chain, quite working environment guaranteed

  • Automatic up-and-down capping station, protects the print head more effectively


1602uv2

  • Equipped with two 11600 print heads, 3.5pl ultra-small ink droplets

  • 1.6m UV roll to roll printer dedicated for white + color printing

  • Scientific head array, high-precision bottom plate, craftsmanship of quality

  • Light weight and compact design, saves workshop space


Features

Feature of OR-1602 UV

Latest technology of DTF , Want some quality clothing shirt? Try our DTF Print, same as silkscreen.


1.11

500mI large capacity ink supply system

2.22

High quality imported THK highprecision guide rail


3.33

Moisturizing cleaning assembly

4.44

Automatic take-up

5.55

LED backlight

6.66 Adjustable pinch rollers



Application

1602uv3

APPLICATIONS : light box posters, car stickers, advertising hoardings, golden andsilver paper, leather printing, high-end gift boxes, food packaging, labels,operation panel and switch printing, etc.

Additional Value
01
Year Warranty
Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
02

Online Technical Support
The expert team will serve you online and solve any problems you encounter for free.
03
Inkjet Printer Starter Kit
Starter kit pack including complete set of test inks, commonly used replacement parts,and the user's guide, installation Video Instructions.
04
Dealer’s Team Training
Regularly provide our dealers , technical training of new models, application solutions training, sales guidance training.

DTF Accessories
DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.
DTF PET Films
DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.
DTF Textile Prinitng Ink
DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology.ORIC offers different colors of DTF inks such as W, Y, K, M, C, Or, Gr, and also fluorescence pink & fluorescence yellow.
DTF Hot Melt Powder
Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.
