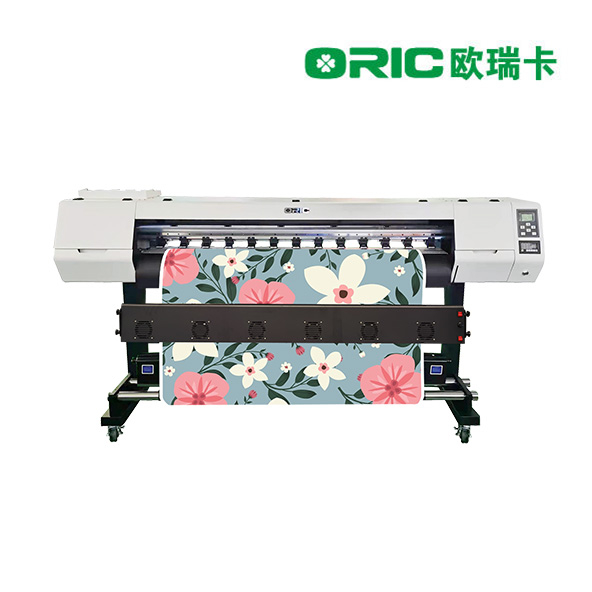

OR-1601TX Sublimation Printer (With Single 13200-A1 Heads)

Parameter
Print Head: Single i3200-A1 Print Heads
Max Print Size: 63 in.(1600 mm)
Colors : CMYK

Feature
1.6m/1.8m Sublimation Printer (With Single 3200-A1 Heads)

  • OR-1601TX/OR-1801TX

  • ORIC

Availability:

PDF Export

Printer Heads

喷头2Epson Inkjet Head - i3200-A1

The Epson authorized i3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with (600 dpi/colour) high-density resolution. This printhead is suitable for water based inks. Ink ejection of up to 4 colours realize with high resolution.PrecisionCore print head has proven high durability and extended service life by Epson's industrial printers.


Product Specifications:
Product name EPSON i3200-A1
Ink Type Sublimation Ink
Type PrecisionCore MicroTFP print head
WidthxDepthxHeight 69.1x 59.4 x 35.6 mm
Number of Nozzle 3200
Nozzle pitch/nozzle row 1/300 inch
Nozzle rows 8 rows
Nozzle Resolution 300 npi /row 600 npi/2 rows
Max. number of colour inks 4 colours
Droplet volumes 6 pl (Single mode)
6.3,1 2.3 pl (Multi mode)

* Single i3200-A1 Print Heads Speed

720x1200dpi - 4pass              21 sqm/h

720x1800dpi - 6pass            14 sqm/h


Technical Specifications


Technical Specifications
ModelOR-1601TX
Print HeadSingle i3200-E1 Print Heads
Printing TechnologyPiezoelectric Inkjet
Acceptable MediaWidth63.8 in.(1620 mm)
ThicknessMaximum 39 mil(1 mm)
Weight132.2 lb.(60 kg)
Printing Width63 in.(1600 mm)
Ink CartridgesTypeEco Solvent Ink
Supply4*4 CISS (220ml ink cartridge with 1.5L ink tank)
Color4 colors (Cyan, Magenta, Yellow, Black)
Printing ResolutionMaximum 2400 dpi
Printing Speed4pass(720x1200dpi): 21sqm/h
6pass(720x1800dpi):14 sqm/h
Media Heating SystemPlatform drying
InterfaceLAN
Power SupplyAC 220V ± 10%,50/60 HZ
Dimensions(with stand)98(W)x23.6(D)x54(H) in.
(2490(W)x600(D)x1370(H) mm )
Weight(with stand)300 kg
Package Dimensions124(W)x41(D)x59(H) in
( 2640(W)x650(D)x650(H) mm )
Package Weight320 kg
EnvironmentPower onTemperature: 59 ℉to 90 ℉ [15℃ to 32℃] (68℉[ 20℃] /Humidity: 35 to 80% (no condensation)
Power offTemperature: 41 ℉to 104 ℉ [5℃ to 40℃]  /Humidity: 20 to 80% (no condensation)
AccessoriesDual l3200 Print Heads, USB cable, media clamp, manual, drain bottle, ink cartridges, RIP software, etc.


Features

Feature of OR-1601TX

Latest technology of DTF , Want some quality clothing shirt? Try our DTF Print, same as silkscreen.


111

Multi-stage pinch rollerstructure brings more stablefeeding precision.

222

High-precision andhigh-stability tensioningpulley system.


333

Carridge anti-collisiondevice to better protectthe printheads.

444

Front, middle and rearthree-stage heating deviceto accelerate drying andimprove output quality.

555

Moisturizing cleaningassembly ensures thestability of head cleaningand improves workingstability.

666External power supply,intelligent rolling system.



Application

1601tx

Both the ublimation and direct-to-extile printers are examples of our expertise and engineering: top performant, relable and precise. With ORIC seres printer ,you can maximizproduction while ontroling qalty and miimizing osts for beautful soft signage appare and interior deor tems that wil set your busines apart from the ompetition .Widapplications in clothing, home decoration fabrics, sampling, shrit, canvas bags, bolster, scooter, flags, textile gadgets etc.

Additional Value
01
Year Warranty
Within 1 year from the date of purchase, if the machine has non-man-made damage, you can enjoy free warranty service.
02

Online Technical Support
The expert team will serve you online and solve any problems you encounter for free.
03
Inkjet Printer Starter Kit
Starter kit pack including complete set of test inks, commonly used replacement parts,and the user's guide, installation Video Instructions.
04
Dealer’s Team Training
Regularly provide our dealers , technical training of new models, application solutions training, sales guidance training.

DTF Accessories
DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.
DTF PET Films
DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.
DTF Textile Prinitng Ink
DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology.ORIC offers different colors of DTF inks such as W, Y, K, M, C, Or, Gr, and also fluorescence pink & fluorescence yellow.
DTF Hot Melt Powder
Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.
ORIC factory is a digital inkjet printing equipment manufacturer and solution provider For UV(Roll-roll/Hybird/Flatbed)/ Sublimatoin / ECO Solvent / Solvent / DTF / UV DTF / Texture Painting
